8. Exporting TBX Files

Created by Steven Smith, Modified on Fri, 8 Nov at 10:14 PM by Steven Smith

Introduction

TermBase eXchange (TBX) is an international standard (ISO 30042:2008) for the representation of structured concept-oriented terminological data, co published by ISO and the Localization Industry Standards Association (LISA). More information can be found on various internet sites i.e. Wikipedia.

Passolo has no TBX export function. The TBX Export of the Traloctec Data Exchange Utility for Passolo is more versatile and can be configured with more options and exports more meta data from the translation list entries of the Passolo project.

Exported data

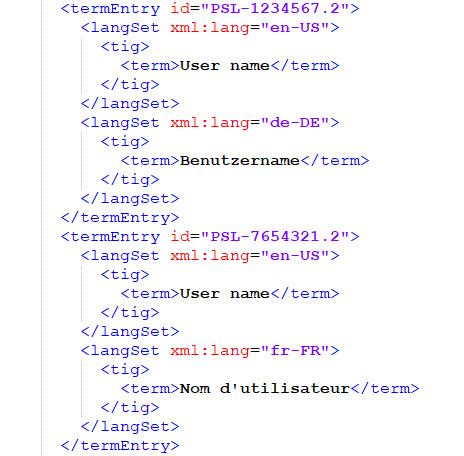

The exported translation unit elements have the following layout:

The following data fields are exported:

Exported data fields
termEntry	Concept level element
id	Combination of the internal translation list ID of Passolo and the translation list record ID (PslNumber).
langSet	Language level element
xml:lang	Language attribute taken from the Passolo, written as language/region coding
tig	Nesting element for the term level elements. Each tig contains one term element
term	Contains the term

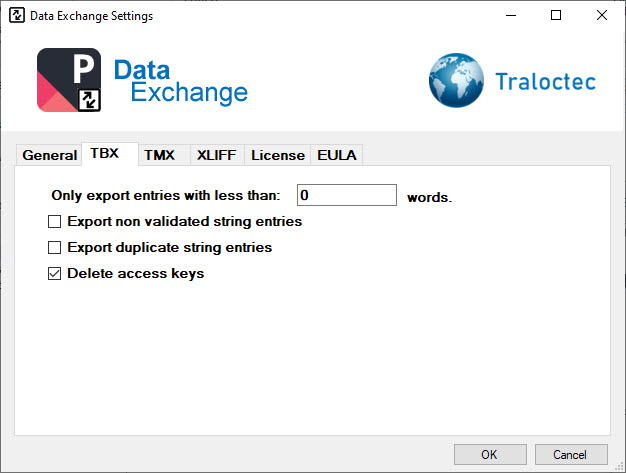

TBX Export Options

By default, all entries are exported. Using the entry field Only export entries with less than x words the plugin is calculating the number of words per entry using internal Passolo functions and just exports translation units, where the number of words in the source entry is less than the entered number of words.

By default, only all entries are exported, that have the internal Passolo state Translated and Validated. Using the option Export non-validated string entries, the plugin will also export entries that have the internal Passolo state Pre-Translated (green), Machine Translated (AT), For Review (blue). Not translated entries (red) are not exported.

By default, entries are just exported once. When the option Export duplicate string entries is activated, duplicate entries with the same source text and the same translated text are exported again.

By default, Windows access keys (Ampersand & character in Windows menus, dialogs, .NET Winforms, and Delphi and the Underscore _ character in Microsoft WPF) are deleted from source and target text. When the option Delete access keys is deactivated, these characters will remain in the exported data.
